imagepolygon

(PHP 4, PHP 5, PHP 7, PHP 8)

imagepolygonDraws a polygon

Descrição

Signature as of PHP 8.0.0 (not supported with named arguments)

imagepolygon(GdImage $image, array $points, int $color): bool

Alternative signature (deprecated as of PHP 8.1.0)

imagepolygon(
    GdImage $image,
    array $points,
    int $num_points,
    int $color
): bool

imagepolygon() creates a polygon in the given image.

Parâmetros


Um objeto GdImage, retornado por uma das funções de criação de imagem, como imagecreatetruecolor().

points

An array containing the polygon's vertices, e.g.:

points[0] = x0
points[1] = y0
points[2] = x1
points[3] = y1

num_points

Total number of points (vertices), which must be at least 3.

If this parameter is omitted as per the second signature, points must have an even number of elements, and num_points is assumed to be count($points)/2.
color

Um identificador de cor criado com imagecolorallocate().

Valor Retornado

Retorna true em caso de sucesso ou false em caso de falha.

Changelog

Versão Descrição
8.1.0 The parameter num_points has been deprecated.
8.0.0 O parâmetro image agora espera uma instância de GdImage; anteriormente, um resource gd válido era esperado.

Exemplos

Exemplo #1 imagepolygon() example

<?php
// Create a blank image
$image = imagecreatetruecolor(400, 300);

// Allocate a color for the polygon
$col_poly = imagecolorallocate($image, 255, 255, 255);

// Draw the polygon
imagepolygon($image, array(
0, 0,
100, 200,
300, 200
),
3,
$col_poly);

// Output the picture to the browser
header('Content-type: image/png');

imagepng($image);
imagedestroy($image);
?>

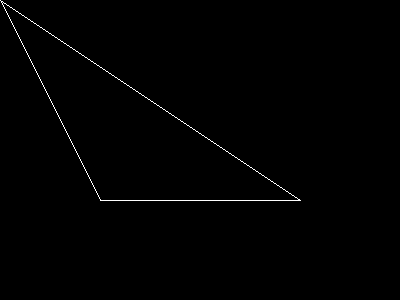

O exemplo acima produzirá algo semelhante a:

Output of example : imagepolygon()

Veja Também

add a note

User Contributed Notes 4 notes

up
5
tatlar at yahoo dot com
17 years ago
Function to get 5-sided polygon (pentagon) or star (pentagram) co-ords.
<?php
function _makeFiveSidedStar( $x, $y, $radius, $shape='polygon', $spiky=NULL ) {
$point = array() ; // new array
$angle = 360 / 5 ;
$point[0]['x'] = $x ;
$point[0]['y'] = $y - $radius ;
$point[2]['x'] = $x + ( $radius * cos( deg2rad( 90 - $angle ) ) ) ;
$point[2]['y'] = $y - ( $radius * sin( deg2rad( 90 - $angle ) ) ) ;
$point[4]['x'] = $x + ( $radius * sin( deg2rad( 180 - ( $angle*2 ) ) ) ) ;
$point[4]['y'] = $y + ( $radius * cos( deg2rad( 180 - ( $angle*2 ) ) ) ) ;
$point[6]['x'] = $x - ( $radius * sin( deg2rad( 180 - ( $angle*2 ) ) ) ) ;
$point[6]['y'] = $y + ( $radius * cos( deg2rad( 180 - ( $angle*2 ) ) ) ) ;
$point[8]['x'] = $x - ( $radius * cos( deg2rad( 90 - $angle ) ) ) ;
$point[8]['y'] = $y - ( $radius * sin( deg2rad( 90 - $angle ) ) ) ;
if(
$shape == 'star' ) {
if(
$spiky == NULL ) $spiky = 0.5 ; // degree of spikiness, default to 0.5
$indent = $radius * $spiky ;
$point[1]['x'] = $x + ( $indent * cos( deg2rad( 90 - $angle/2 ) ) ) ;
$point[1]['y'] = $y - ( $indent * sin( deg2rad( 90 - $angle/2 ) ) ) ;
$point[3]['x'] = $x + ( $indent * sin( deg2rad( 180 - $angle ) ) ) ;
$point[3]['y'] = $y - ( $indent * cos( deg2rad( 180 - $angle ) ) ) ;
$point[5]['x'] = $x ;
$point[5]['y'] = $y + ( $indent * sin( deg2rad( 180 - $angle ) ) ) ;
$point[7]['x'] = $x - ( $indent * sin( deg2rad( 180 - $angle ) ) ) ;
$point[7]['y'] = $y - ( $indent * cos( deg2rad( 180 - $angle ) ) ) ;
$point[9]['x'] = $x - ( $indent * cos( deg2rad( 90 - $angle/2 ) ) ) ;
$point[9]['y'] = $y - ( $indent * sin( deg2rad( 90 - $angle/2 ) ) ) ;
}
ksort( $point ) ;
$coords = array() ; // new array
foreach( $point as $pKey=>$pVal ) {
if(
is_array( $pVal ) ) {
foreach(
$pVal as $pSubKey=>$pSubVal ) {
if( !empty(
$pSubVal ) ) array_push( $coords, $pSubVal ) ;
}
}
}
return
$coords ;
}
$values = _makeFiveSidedStar( 100, 100, 50, 'star' ) ;
?>
up
1
licson0729 at gmail dot com
11 years ago
Function to draw a n-sided regular polygon

<?php
$img
= imagecreatetruecolor(1360,768);

function
regularPolygon($img,$x,$y,$radius,$sides,$color)
{
$points = array();
for(
$a = 0;$a <= 360; $a += 360/$sides)
{
$points[] = $x + $radius * cos(deg2rad($a));
$points[] = $y + $radius * sin(deg2rad($a));
}
return
imagepolygon($img,$points,$sides,$color);
}

regularPolygon($img,1360/2,768/2,300,8,0xffffff);//Test draw

header('Content-type: image/png');
imagepng($img);
imagedestroy($img);
?>
up
0
jsnell at networkninja dot com
22 years ago
Here are some handy routines for rotation and translation of polygons. Scaling could be added easily as well.

<?php
function translate_point(&$x,&$y,$angle,$about_x,$about_y,$shift_x,$shift_y)
{
$x -= $about_x;
$y -= $about_y;
$angle = ($angle / 180) * M_PI;
/* math:
[x2,y2] = [x, * [[cos(a),-sin(a)],
y] [sin(a),cos(a)]]
==>
x = x * cos(a) + y*sin(a)
y = x*-sin(a) + y*cos(a)
*/

$new_x = $x * cos($angle) - $y * sin($angle);
$new_y = $x * sin($angle) + $y * cos($angle);
$x = $new_x+ $about_x + $shift_x ;
$y = $new_y + $about_y + $shift_y;
}

function
translate_poly($point_array, $angle, $about_x, $about_y,$shift_x,$shift_y)
{
$translated_poly = Array();
while(
count($point_array) > 1)
{
$temp_x = array_shift($point_array);
$temp_y = array_shift($point_array);
translate_point($temp_x, $temp_y, $angle, $about_x, $about_y,$shift_x, $shift_y);
array_push($translated_poly, $temp_x);
array_push($translated_poly, $temp_y);
}
return
$translated_poly;
}
?>
up
-4
licson0729 at gmail dot com
11 years ago
Here's a function to draw a n-sided star:

<?php
function drawStar($img,$x,$y,$radius,$sides,$color,$spikness=0.5)
{
$point =array();
$t = 0;
for(
$a = 0;$a <= 360;$a += 360/($sides*2))
{
$t++;
if(
$t % 2 == 0)
{
$point[] = $x + ($radius * $spikness) * cos(deg2rad($a));
$point[] = $y + ($radius * $spikness) * sin(deg2rad($a));
}else{
$point[] = $x + $radius * cos(deg2rad($a));
$point[] = $y + $radius * sin(deg2rad($a));
}
}
return
imagepolygon($img,$point,$sides*2,$color);
}
?>
